# README.md
# Yoga Pose Classifier

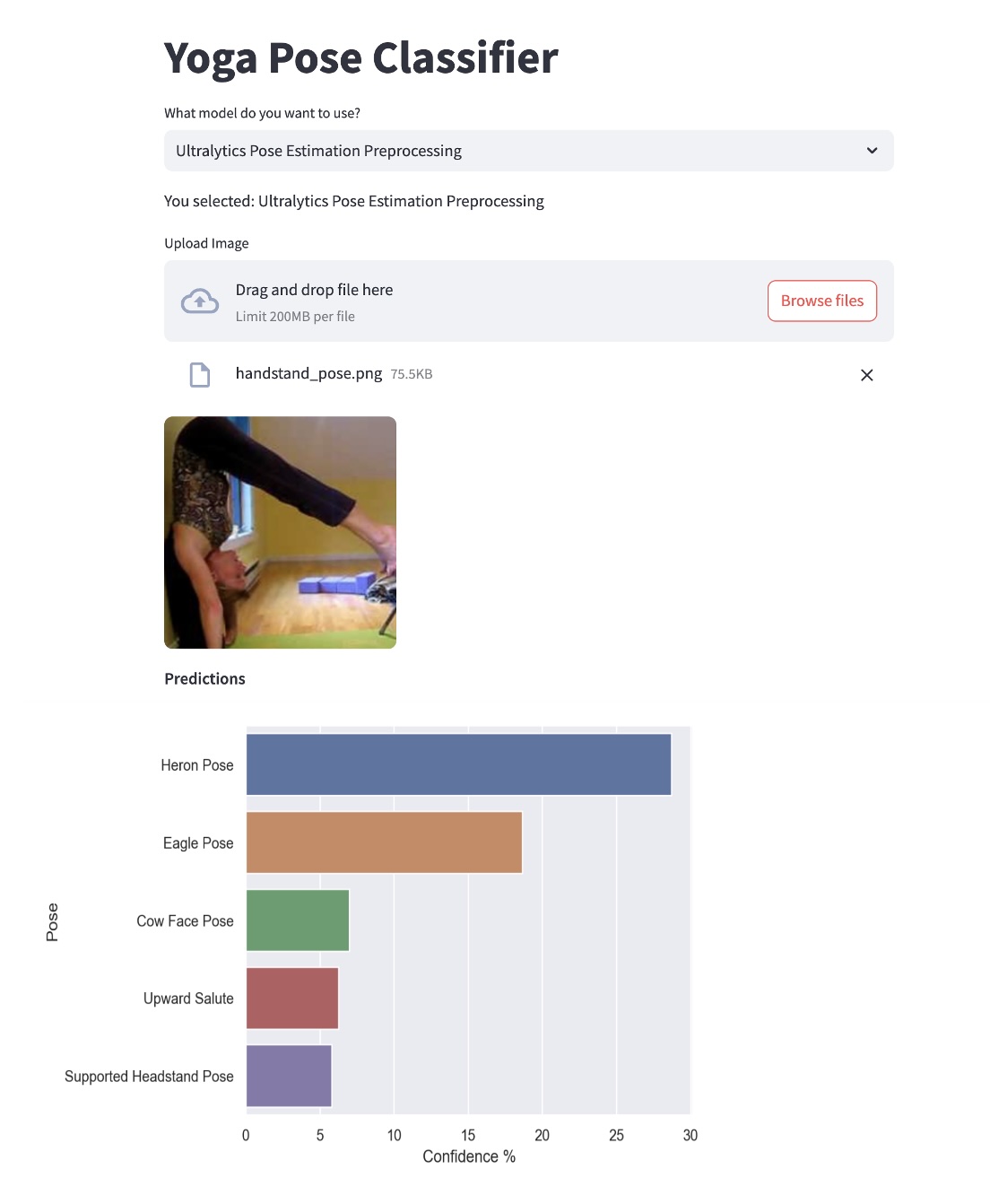

This is a simple web application built with Streamlit for classifying yoga poses from uploaded images. The application uses a pre-trained deep learning model to predict the yoga pose in the uploaded image.
### Features
- Upload an image of a yoga pose.
- Display the uploaded image.
- Predict the pose in the image.
- Visualize prediction results as a bar plot.
Must have ultalytics installed
pip install ultalytics
### Command
streamlit run app.py
# ctrl-c to stop the program
Libraries and Functions
import os
import numpy as np
import pickle
import pandas as pd
import tensorflow as tf
from tensorflow.keras import layers
from tensorflow.keras.models import load_model
from tensorflow.keras.preprocessing.image import load_img, img_to_array
from tensorflow.keras.layers import Lambda, Input
from tensorflow.keras.models import Model
from tensorflow.keras.applications.resnet_v2 import ResNet50V2, preprocess_input as resnet_preprocess
from tensorflow.keras.applications.densenet import DenseNet121, preprocess_input as densenet_preprocess
from ultralytics import YOLO
from sklearn.preprocessing import LabelEncoder
# Get current working directory
current_path = os.getcwd()
# Path to yoga pose categories file
pose_category_path = os.path.join(current_path, 'static/poses_category.pkl')
# Load predictor model
predictor_model_transfer = load_model(r'static/resnet_finetuned_model3.h5')
print("Weights loaded")
predictor_model_low = load_model(r'static/resnet_finetuned_model2.h5')
print("Weights loaded")
predictor_model_simple= load_model(r'static/model3_assign2.h5')
print("Weights loaded")
predictor_pose_est= load_model(r'static/yoga_pose_classifier_pd4.h5')
print("Weights loaded")
# Load pose categories
with open(pose_category_path, 'rb') as handle:
poses = pickle.load(handle)
# Input shape for images
input_shape = (224, 224, 3)
input_layer = Input(shape=input_shape)
print("Models loaded")
def predictor_transfer(img_path):
"""
Function to predict Yoga Pose from an image.
Args:
img_path (str): Path to the input image.
Returns:
pandas.DataFrame: DataFrame containing predicted Yoga Poses and their corresponding confidence scores.
"""
# Load image and preprocess
img = load_img(img_path, target_size=(224, 224))
img = img_to_array(img)
img = np.expand_dims(img, axis=0)
# Predict yoga poses
prediction_transfer = predictor_model_transfer.predict(img) * 100
prediction_transfer = pd.DataFrame(np.round(prediction_transfer, 1), columns=poses).transpose()
prediction_transfer.columns = ['values']
prediction_transfer = prediction_transfer.nlargest(5, 'values')
prediction_transfer = prediction_transfer.reset_index()
prediction_transfer.columns = ['name', 'values']
return prediction_transfer
def predictor_simple(img_path):
"""
Function to predict Yoga Pose from an image.
Args:
img_path (str): Path to the input image.
Returns:
pandas.DataFrame: DataFrame containing predicted Yoga Poses and their corresponding confidence scores.
"""
# Load image and preprocess
img = load_img(img_path, target_size=(224, 224))
img = img_to_array(img)
img = np.expand_dims(img, axis=0)
# Predict yoga poses
prediction = predictor_model_simple.predict(img) * 100
prediction = pd.DataFrame(np.round(prediction, 1), columns=poses).transpose()
prediction.columns = ['values']
prediction = prediction.nlargest(5, 'values')
prediction = prediction.reset_index()
prediction.columns = ['name', 'values']
return prediction
def predictor_low_acc(img_path):
"""
Function to predict Yoga Pose from an image.
Args:
img_path (str): Path to the input image.
Returns:
pandas.DataFrame: DataFrame containing predicted Yoga Poses and their corresponding confidence scores.
"""
# Load image and preprocess
img = load_img(img_path, target_size=(224, 224))
img = img_to_array(img)
img = np.expand_dims(img, axis=0)
# Predict yoga poses
prediction = predictor_model_low.predict(img) * 100
prediction = pd.DataFrame(np.round(prediction, 1), columns=poses).transpose()
prediction.columns = ['values']
prediction = prediction.nlargest(5, 'values')
prediction = prediction.reset_index()
prediction.columns = ['name', 'values']
return prediction
############################# Pose Estimation ##################
model_yolo = YOLO("yolo11n-pose.pt")
model_nn = load_model("static/yoga_pose_classifier_pd4.h5") # Update with actual model path
# Function to extract keypoints from a new image
# Load class names from pickle file
pickle_file = "static/poses_category.pkl" # Update with actual path
with open(pickle_file, "rb") as f:
class_names = pickle.load(f) # Load class names dictionary or list
# Ensure class_names is a list
if isinstance(class_names, dict):
class_names = list(class_names.values()) # Convert dictionary to list
# Function to extract keypoints from a test image
def extract_keypoints_from_image(img_path, expected_num_keypoints=196):
results = model_yolo(img_path)
for result in results:
if result.keypoints is not None and len(result.keypoints.xy.cpu().numpy()) > 0:
keypoints = result.keypoints.xy.cpu().numpy().flatten()
# Ensure the keypoints have the correct shape (pad with zeros if needed)
if len(keypoints) < expected_num_keypoints:
keypoints = np.pad(keypoints, (0, expected_num_keypoints - len(keypoints)), mode='constant')
return keypoints
return None # Return None if no pose is detected
# Function to predict yoga pose and return a DataFrame for bar plot
def predict_yoga_pose(img_path):
new_keypoints = extract_keypoints_from_image(img_path)
if new_keypoints is not None:
new_keypoints = np.array(new_keypoints).reshape(1, -1) # Reshape for model input
if new_keypoints.shape[1] == model_nn.input_shape[1]:
pose_probs = model_nn.predict(new_keypoints)[0] # Get class probabilities
# Create a DataFrame for visualization
prediction_df = pd.DataFrame({
"name": class_names, # Class names from pickle
"values": pose_probs * 100 # Convert to percentage
})
# Get top 5 predictions
top_5_predictions = prediction_df.sort_values("values", ascending=False).head(5)
return top_5_predictions
Application
import streamlit as st
import os
import logging
import matplotlib.pyplot as plt
import seaborn as sns
from PIL import Image
from helper import *
# Set seaborn style
sns.set()
# Configure logging
logging.basicConfig(format='%(asctime)s - %(levelname)s - %(message)s', level=logging.INFO)
def save_uploaded_file(uploaded_file):
"""
Save the uploaded file to the 'uploaded' directory.
Args:
uploaded_file (File): Uploaded file object.
Returns:
int: Status code indicating success (1) or failure (0).
"""
try:
with open(os.path.join('uploaded', uploaded_file.name), 'wb') as f:
f.write(uploaded_file.getbuffer())
return 1
except:
return 0
def main():
"""
Main function to run the Streamlit app.
"""
# Set app title
st.title('Yoga Pose Classifier')
option = st.selectbox(
"What model do you want to use?",
("Transfer Learning Imagenet", "Simple CNN", "Low accuracy Transfer Learning", "Ultralytics Pose Estimation Preprocessing"),
)
st.write("You selected:", option)
print(option)
# File uploader
uploaded_file = st.file_uploader("Upload Image")
if uploaded_file is not None:
logging.info("File uploaded: %s", uploaded_file.name)
# Save the uploaded file
if save_uploaded_file(uploaded_file):
# Display the uploaded image
display_image = Image.open(uploaded_file)
display_image = display_image.resize((224, 224)) # Resize image
st.image(display_image)
if option == 'Transfer Learning Imagenet':
# Make prediction using the uploaded image
prediction_transfer = predictor_transfer(os.path.join('uploaded', uploaded_file.name))
logging.info("Prediction: %s", prediction_transfer)
st.markdown('**Predictions**')
# Display predictions as bar plot
fig, ax = plt.subplots()
ax = sns.barplot(y='name', x='values', data=prediction_transfer,
order=prediction_transfer.sort_values('values', ascending=False).name)
ax.set(xlabel='Confidence %', ylabel='Pose')
st.pyplot(fig)
if option == "Simple CNN":
prediction_simple = predictor_simple(os.path.join('uploaded', uploaded_file.name))
logging.info("Prediction: %s", prediction_simple)
st.markdown('**Predictions**')
# Display predictions as bar plot
fig, ax = plt.subplots()
ax = sns.barplot(y='name', x='values', data=prediction_simple ,
order=prediction_simple.sort_values('values', ascending=False).name)
ax.set(xlabel='Confidence %', ylabel='Pose')
st.pyplot(fig)
if option == "Low accuracy Transfer Learning":
prediction_low = predictor_low_acc(os.path.join('uploaded', uploaded_file.name))
logging.info("Prediction: %s", prediction_low)
st.markdown('**Predictions**')
# Display predictions as bar plot
fig, ax = plt.subplots()
ax = sns.barplot(y='name', x='values', data=prediction_low ,
order=prediction_low.sort_values('values', ascending=False).name)
ax.set(xlabel='Confidence %', ylabel='Pose')
st.pyplot(fig)
if option == "Ultralytics Pose Estimation Preprocessing":
prediction_ultra = predict_yoga_pose(os.path.join('uploaded', uploaded_file.name))
logging.info("Prediction: %s", prediction_ultra)
st.markdown('**Predictions**')
# Display predictions as bar plot
fig, ax = plt.subplots()
ax = sns.barplot(y='name', x='values', data=prediction_ultra ,
order=prediction_ultra.sort_values('values', ascending=False).name)
ax.set(xlabel='Confidence %', ylabel='Pose')
st.pyplot(fig)
if __name__ == '__main__':
main()
